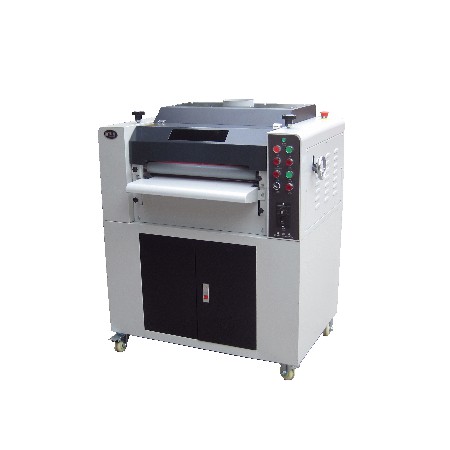

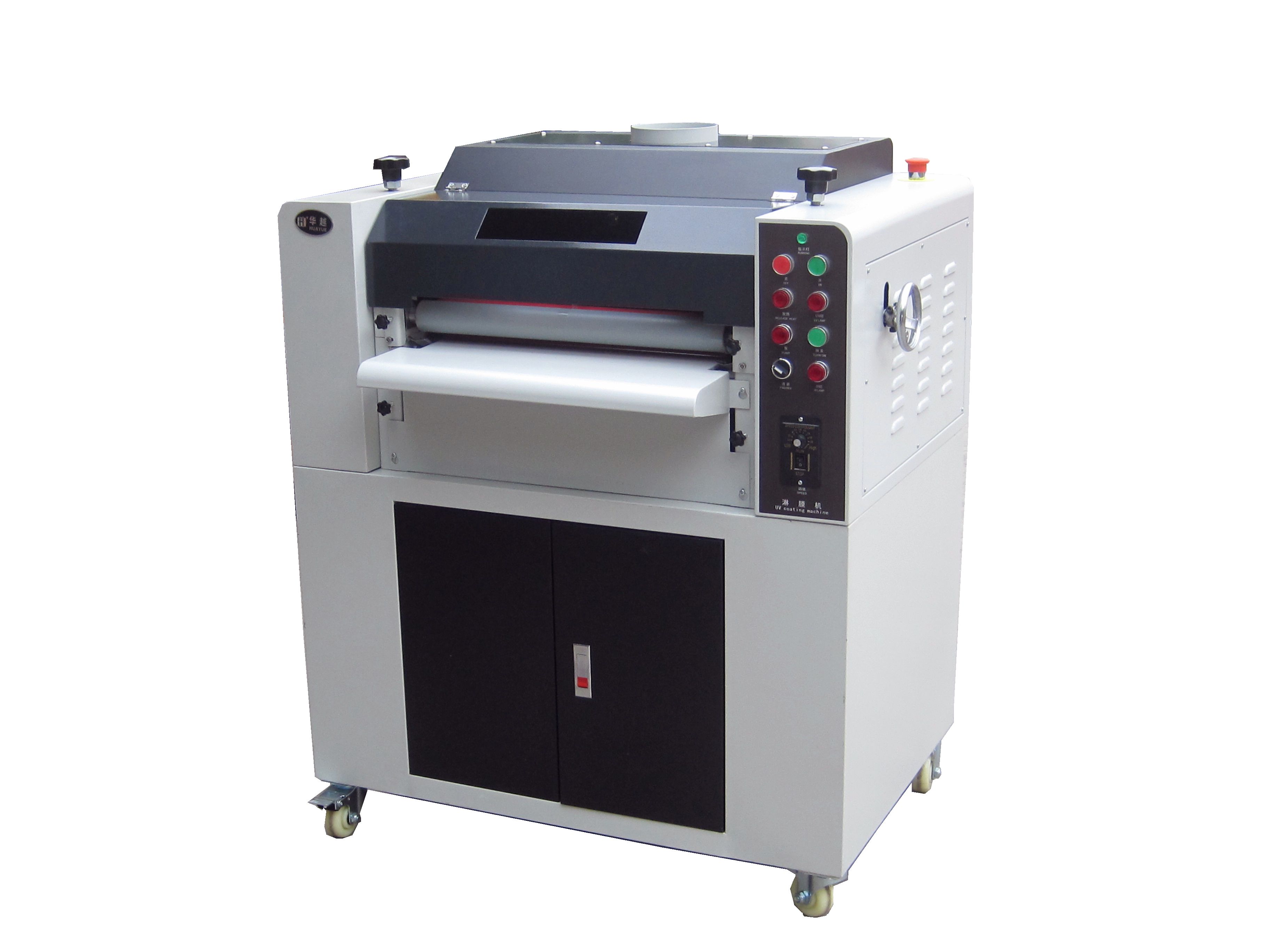

18 inch local film machine
2020-12-09 746
|
Specification |
18 inch |
24 inch |
|
Max working width |
480mm |
Six30mm |
|
Max working thickness |
5mm |
5mm |
|
Max working speed |
12m/min |
12m/min |
|
Dry way |
UV lamp |
UV lamp |
|
Power supply |
AC220V/50HZ |
AC220V/50HZ |
|
Max rate of power |
2.5KW |
4.5KW |
|
Machine dimension |
1000x800x1410mm |
1120x1360x1340mm |
|
N / G net / gross weight |
147.5KG/230KG |
183KG/243KG |
|
Packing size |
1040x840x1550mm |
1200x880x1550mm |
|
18 inch local film machine(FLM-C) Both smooth and patterned gonorrhea It is used for surface treatment of some materials such as paper, cloth or post press plastics The function of one machine with multi axes is realized, and three kinds of patterns are replaced by one twist The operation is simple, convenient and efficient Adjustable operating speed The finished product is waterproof, abrasion resistant and scratch resistant |
||
