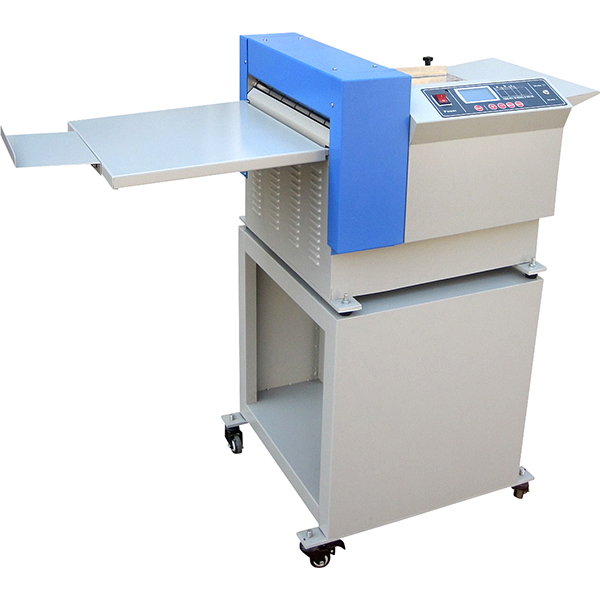

Model 型號

SYH---380A/520

Max working width 最大工作寬度

380mm

Max working length 最大工作長度

Unlimited 無限制

Quantity of mark 壓痕數量

1-----15

Thickness of paper 紙張厚度

50------400g

Min distance between marks 兩痕最短距離

1mm

Speed (Base on A4 paper) 速度（基于A4紙）

60pcs/min

Power supply 電源

AC220V/50HZ

Rate of power 功率

600W

Machine dimension 機器尺寸

1350x560x1000mm

Net weight 凈重

80KG

Packing size 包裝尺寸

1140x640x700mm

結構特性：

用于紙張，相片，相冊封面壓痕

可連續壓痕15條，壓痕距離，深淺可自行調整，

自動計算壓翻書線尺寸，生產效率更高

Structural characteristics:

1. The automatic digital creasing machine is creasing for papers, photos and album covers.

2. It can crease 15 marks continuously at one time. The distance between marks and the depth of marks is adjustable.

3. Autonomic computing for the size of books line, high efficency.
